Yodock 2001 46” x 72”

Yodock 2001 46” x 72” Extra Tall Water Barrier

The Yodock 2001 Barricade is a versatile, water-filled Longitudinal Channelizing Device (LCD) designed for effective traffic and pedestrian channelization. It is an excellent solution for road closures, perimeter fencing for vertical construction, and temporary barriers for various projects.

Features

• Lightweight & Convenient: Easily positioned by hand, reducing deployment time and effort.
• Customizable & Versatile:
  • Compatible with additional accessories for road closures, perimeter fencing, and temporary sign supports.
  • Available in custom colors to fit project-specific needs.
• Stackable Design: Enhances transportation and storage efficiency.
• Durable Material: Manufactured using Low-Density Polyethylene (LDPE) for exceptional durability.
• Easy Maneuverability: Equipped with forklift access for seamless handling.
• Tested for Safety:
  • Compliant with MASH TL3 standards for Longitudinal Channelizing Devices.
  • Meets NCHRP 350 safety requirements for work zones and temporary sign supports.

Applications

The Yodock 2001 Barricade is suitable for a wide range of applications, including:

• Temporary Work Zones
• Perimeter Fencing
• Airport Construction & Maintenance
• Parking Facilities
• Municipal & Public Utilities
• Security Checkpoints
• Events & Crowd Control

Yodock 2001 Plastic Jersey Barrier Specifications:

• Dimensions:
  • Length: 72 in. (6 ft)
  • Width: 24 in.
  • Height: 46 in.
• Weight:
  • Empty: 130 lbs.
  • Ballast Capacity (MASH): 75 gallons (Ballasted Weight: 750 lbs.)
  • Ballast Capacity (NCHRP 350): 180 gallons (Ballasted Weight: 1,500 lbs.)
• Material: Low-Density Polyethylene (LDPE)

Certifications

The Yodock 2001 Barricade meets the following safety standards:

• MASH TL3 Certification: Longitudinal Channelizing Device
• NCHRP 350 Certification:
  • Longitudinal Channelizing Device
  • Temporary Sign Support
  • Work Zone Barricade
  • Longitudinal Barrier (when used with a Steel Rail Kit)

Additional Resources

• Product Information Sheets:
  • Yodock® 2001 PI Sheet
• Manuals:
  • NCHRP 350 Deployment Guide
  • MASH Deployment Guide
• Brochures:
  • Barricade Quick Guide Sheet
  • Antifreeze Chart

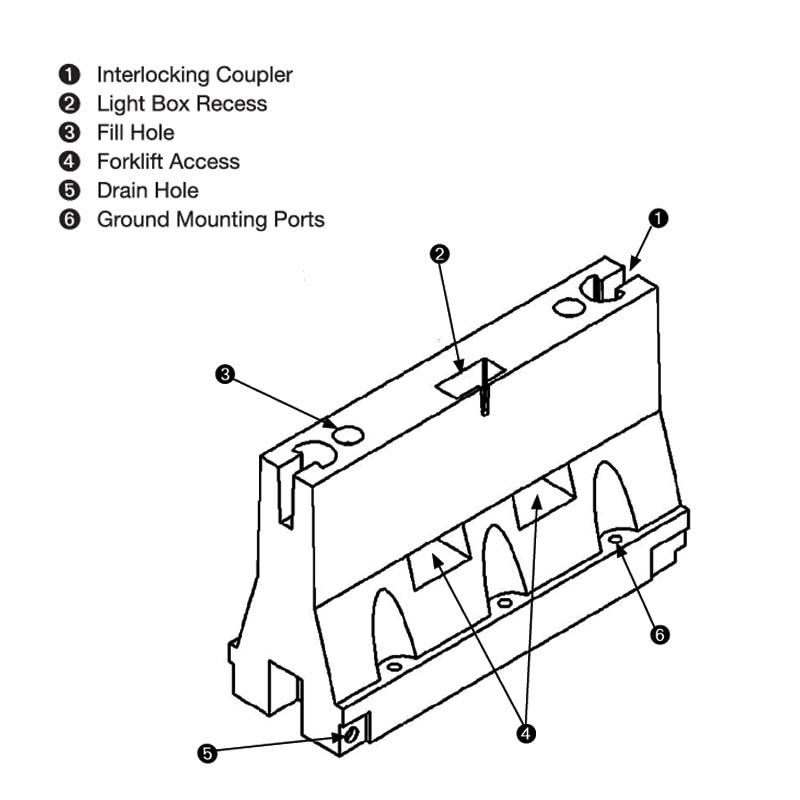

Features:

• Lightweight design allows for easy manual positioning.
• Includes a coupler for secure interlocking.
• Ideal for applications such as longitudinal blocking, perimeter fencing, road closures, and temporary sign support.
• Stackable for optimized transportation and storage efficiency.
• Constructed from High Density Polyethylene (HDPE) for enhanced UV and impact resistance.
• Features convenient forklift access for easy maneuverability.
